Negative Pressure Rooms HVAC Design: Hospital Best Practices

Controlling airborne infections is a top priority for healthcare facilities. In the GCC region—where healthcare systems are rapidly modernizing—Negative Pressure Rooms have become essential for patient isolation and infection prevention. This article explains what Negative Pressure Rooms are, their importance in hospitals, and how HVAC design ensures their safe operation.

Discover our specialized Hygienic AHUs for Hospitals designed to meet the demands of Negative Pressure Room applications across GCC healthcare facilities.

What Are Negative Pressure Rooms and Why Are They Important?

Negative Pressure Rooms are specialized hospital rooms designed to contain airborne pathogens and prevent their spread to adjacent areas. These rooms maintain a lower air pressure than surrounding spaces, ensuring that contaminated air flows into the room but not out.

Applications include:

Airborne infection isolation rooms (AIIR)
Tuberculosis and COVID-19 isolation wards
Specialized laboratories and treatment areas

By using HVAC systems to maintain controlled airflow and filtration, Negative Pressure Rooms protect both patients and healthcare workers from cross-contamination.

Standards and Guidelines for Negative Pressure Rooms

Designing effective Negative Pressure Rooms requires compliance with international and regional standards:

ASHRAE 170: Specifies minimum ventilation rates, pressure differentials, and filtration requirements for healthcare facilities.
CDC Guidelines: Recommend maintaining ≥2.5 Pa pressure differential and 12–15 air changes per hour (ACH) in isolation rooms.
HTM 03-01: UK healthcare ventilation guidelines focusing on infection control.
GCC Regulations: UAE’s DHA and Saudi MOH enforce similar standards, emphasizing HEPA filtration and pressure monitoring.

Adhering to these standards ensures Negative Pressure Rooms meet infection prevention goals and pass health authority inspections.

Understand compliance differences with our guide on Pharmaceutical vs Hospital HVAC Standards, tailored for GCC healthcare and pharma environments.

Key HVAC Design Elements for Negative Pressure Rooms

To maintain proper functionality, HVAC systems for Negative Pressure Rooms must include:

Exhaust Air Systems: Dedicated exhaust fans remove contaminated air and direct it safely outdoors.
Pressure Differential Targets: Maintain ≥2.5 Pa lower pressure than adjacent spaces to contain pathogens.

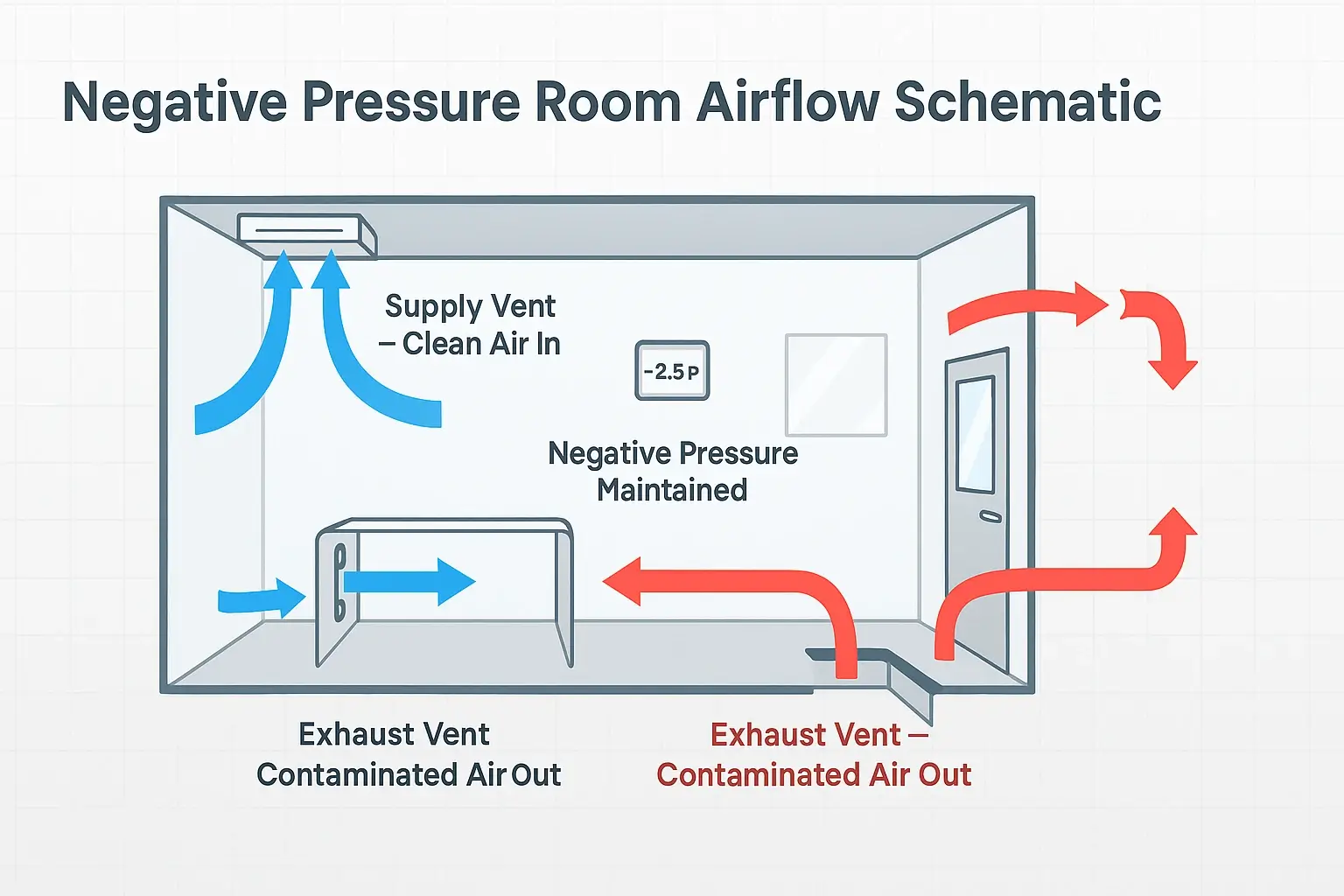

Airflow Direction: Air flows from clean areas (corridors) into isolation rooms and exits through exhaust ducts.
Multi-Stage Filtration: Use pre-filters and HEPA filters to capture microorganisms.
Anterooms and Airlocks: Provide buffer zones to stabilize pressure and enhance containment.
Temperature and Humidity Control: Maintain comfort for patients while supporting pathogen control.

Properly sizing fans, ducts, and filter systems is critical to sustaining these conditions reliably.

Best Practices for Operation and Maintenance

Operating Negative Pressure Rooms requires continuous monitoring and proactive maintenance:

Pressure Sensors and Alarms: Real-time monitoring of room pressure ensures safety.
Air Changes: Maintain 12–15 ACH to dilute airborne contaminants.
Filter Maintenance: Regular inspection and replacement of pre-filters and HEPA filters.
System Testing: Conduct smoke tests or airflow visualization to validate pressure containment.
Integration with BMS: Building Management Systems should log performance data and alert staff to deviations.

Routine maintenance prevents equipment failures and ensures compliance with infection control protocols.

Ensure reliable HVAC performance by using our Preventive Maintenance Checklist for Hospital AHUs for structured servicing routines

How ACS CLIMACS AHUs Enable Negative Pressure Room Design

ACS CLIMACS Air Handling Units from Klima Global are specifically engineered for hospital isolation applications:

Dedicated Exhaust Sections: Support negative pressure requirements with reliable exhaust airflow.
Integrated HEPA Filtration: Ensures contaminated air is fully treated before discharge.
Automated Pressure Control: Sensors and actuators adjust airflow to maintain precise pressure differentials.
Energy Efficiency: Tailored designs for GCC climate reduce operational costs without compromising safety.
Proven Installations: ACS CLIMACS units have been deployed in UAE and Saudi hospitals for isolation wards and emergency pandemic response.
