DOL, Star-Delta, PLC and VFD Control Panels: Key Differences You Must Know

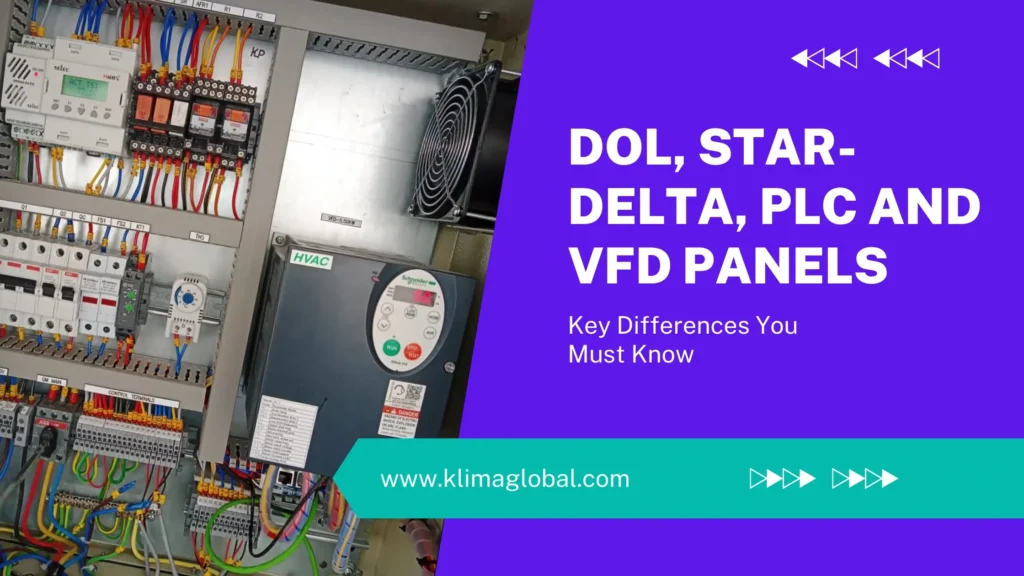

DOL,STAR-DELTA, PLC and VFD Control Panels

Choosing the Right Control Panel for Your HVAC Systems

In HVAC systems, efficient motor control is critical for optimizing energy usage, ensuring smooth operation, and extending equipment lifespan. Control panels such as Direct-On-Line (DOL), Star-Delta, Variable Frequency Drive (VFD), and Programmable Logic Controller (PLC)-based panels cater to different HVAC applications, depending on motor size, load demands, and automation needs. Selecting the right panel is like choosing the right HVAC system—some require basic control, while others demand advanced automation for peak efficiency. This article explores these control panels and their applications in HVAC systems.

DOL Panels: A Simple and Reliable Solution for Small HVAC Motors

A Direct-On-Line (DOL) panel supplies full voltage to a motor upon startup, making it an efficient choice for small HVAC applications.

How a DOL Panel Works in HVAC

Scenario: A small office uses an HVAC system with multiple exhaust fans. Each fan operates independently, and a straightforward control system is preferred.

  • When the HVAC system is turned on, the DOL panel immediately applies full voltage to the fan motor.

  • The fan starts running at full speed instantly, providing immediate ventilation.

  • Overload protection prevents motor damage by shutting it down in case of excessive heat or electrical faults.

Key Features of DOL Panels in HVAC

  • Cost-effective and simple: Ideal for small fans, pumps, and blowers.

  • Instant start-up: Provides quick response for immediate cooling or ventilation.

  • Best for small motors: Not suitable for large HVAC compressors due to high inrush current.

Star-Delta Panels: Soft Start for Medium HVAC Motors

A Star-Delta panel reduces startup current by initially running a motor in a star configuration before switching to full-power delta mode. This prevents electrical surges and reduces wear on the motor.

How a Star-Delta Panel Works in HVAC

Scenario: A hotel’s centralized HVAC system has a large water-cooled chiller. Sudden power surges could damage the compressor motor.

  • When activated, the chiller’s motor starts in star mode, drawing lower current to reduce stress on electrical components.

  • After a few seconds, it transitions to delta mode, supplying full power for efficient cooling.

  • The system runs smoothly, preventing power fluctuations and protecting HVAC equipment.

Key Features of Star-Delta Panels in HVAC

  • Soft starting: Prevents sudden electrical spikes, ideal for large HVAC compressors and pumps.

  • Reduces mechanical wear: Smooth transitions extend motor lifespan.

  • Best for medium-sized motors: Commonly used in chillers, large air-handling units (AHUs), and cooling towers.

VFD Panels: Optimized Energy Efficiency for HVAC Systems

A Variable Frequency Drive (VFD) panel controls motor speed by adjusting voltage and frequency based on demand. This makes it a powerful tool for reducing energy consumption in HVAC systems.

How a VFD Panel Works in HVAC

Scenario: A commercial building’s HVAC system uses multiple air-handling units (AHUs) and variable air volume (VAV) systems. Running fans at full speed all the time would waste energy.

  • The VFD panel adjusts motor speed based on real-time airflow needs.

  • During low occupancy hours, fans slow down, saving energy.

  • If cooling demand increases, the VFD increases fan speed automatically.

Key Features of VFD Panels in HVAC

  • Energy savings: Reduces electricity consumption by matching motor speed to actual HVAC demand.

  • Enhanced system performance: Ensures precise climate control in commercial spaces.

  • Extended equipment lifespan: Soft-start and variable-speed control reduce mechanical wear on HVAC components.

  • Best for HVAC applications requiring speed control: Used in AHUs, cooling towers, exhaust systems, and VAV systems.

PLC-Based Panels: Intelligent Control for Advanced HVAC Automation

A PLC-based panel automates and monitors multiple HVAC components, allowing seamless coordination of complex systems.

How a PLC Panel Works in HVAC

Scenario: A smart building integrates a fully automated HVAC system that adjusts temperature and ventilation based on real-time occupancy and external weather conditions.

  • The PLC panel receives data from temperature and humidity sensors.

  • It automatically adjusts AHU fan speed, chiller settings, and damper positions for optimal efficiency.

  • If an HVAC component malfunctions, the PLC triggers an alarm and switches to a backup system.

Key Features of PLC-Based Panels in HVAC

  • Advanced automation: Ideal for intelligent HVAC systems with IoT integration.

  • Real-time monitoring: Ensures system efficiency and early fault detection.

  • Best for large-scale HVAC operations: Used in smart buildings, hospitals, and industrial HVAC systems.

Comparison Table: DOL, Star-Delta, VFD, and PLC-Based Panels

Feature DOL Panel Star-Delta Panel VFD Panel PLC-Based Panel
Startup Current
High
Low
Controlled
Managed via logic
Control Complexity
Simple
Moderate
High
Very High
Cost
Low
Moderate
High
Very High
Energy Efficiency
Low
Moderate
High
Depends on design

Choosing the Right Control Panel for Your HVAC System

Application Recommended Control Panel
Small fans and pumps
DOL Panel
Medium-sized compressors and chillers
Star-Delta Panel
HVAC systems requiring energy efficiency
VFD Panel
Fully automated HVAC systems
PLC-Based Panel

Comprehensive Control Panel Solutions by Klima Global in the MENA Region

Klima Global General Trading LLC provides a full range of HVAC control panels designed for optimal energy efficiency, automation, and operational reliability. Our solutions include:

  • DOL Panels: Cost-effective control for small HVAC motors.

  • Star-Delta Panels: Smooth startup for medium-sized compressors and chillers.

  • VFD Panels: Energy-saving motor control for variable-load HVAC applications.

  • PLC-Based Panels: Smart automation solutions for large-scale HVAC operations.

Why Choose Klima Global’s Control Panels?

  • Customized Solutions: Tailored for the unique requirements of HVAC applications in the MENA region.

  • Energy-Efficient Designs: Lower operational costs with intelligent motor control.

  • Reliable Performance: Built to enhance HVAC system longevity and efficiency.

Conclusion: Optimize Your HVAC System with the Right Control Panel

Each type of control panel plays a vital role in HVAC system efficiency. DOL panels offer simplicity for small motors, while Star-Delta panels provide a soft start for medium-sized HVAC equipment. VFD panels maximize energy savings by adjusting motor speed, and PLC-based panels enable full automation for intelligent climate control. Choosing the right panel is essential for reducing costs, improving performance, and ensuring long-term reliability in HVAC operations.

For expert guidance on selecting the best control panel for your HVAC needs, contact Klima Global today!

FAQs: Frequently Asked Questions

What’s the difference between DOL and Star-Delta panels?

DOL provides full power instantly, while Star-Delta reduces startup current for smoother motor operation.

Yes, combining VFDs with PLCs offers precise motor control and advanced automation.

VFD panels are the most energy-efficient, as they adjust motor speed to load requirements.

High inrush current can damage both the motor and electrical system.

They require advanced hardware, programming, and skilled personnel for operation.

No, it’s mainly used for medium-sized motors where reduced startup current is needed.

A soft starter gradually increases voltage, while Star-Delta switches motor configurations.

Yes, by reducing mechanical stress with soft starts and stops.

Automotive, chemical, and food industries heavily rely on PLC systems for automation.

Absolutely. They allow smooth acceleration and deceleration, preventing product damage.
