As a premier HVAC equipment supplier across the UAE, Saudi Arabia (KSA), Oman, Qatar, Kuwait, and Bahrain, Klima Global provides the TAITECH series with a specialized Double Skin Casing FCU option. Designed for premium commercial and institutional projects, these units offer enhanced thermal and acoustic performance for demanding environments.

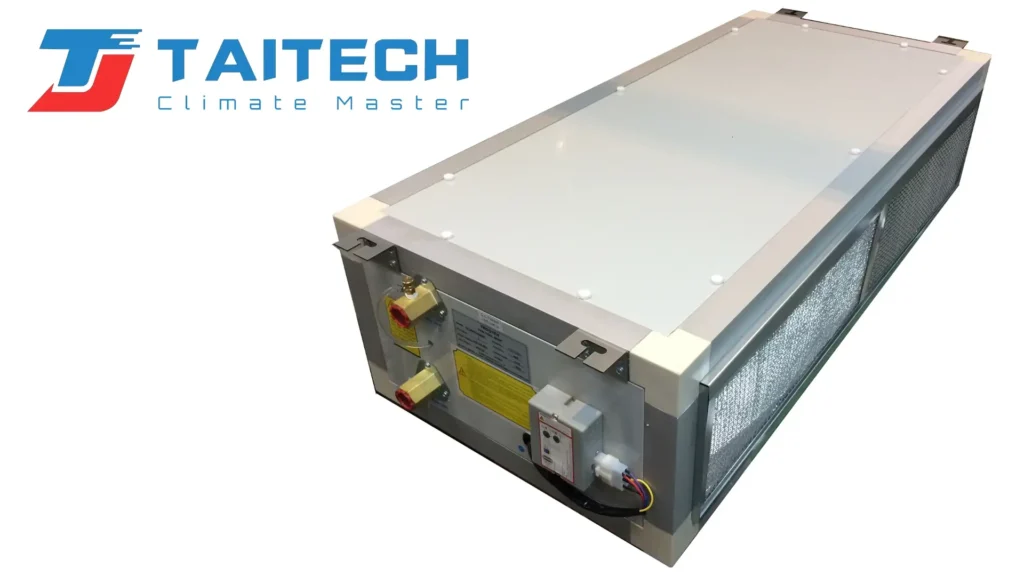

Product Overview: Double Skin Casing FCU
The Double Skin Casing FCU option features a 25mm sandwich panel construction. This design is specifically engineered to provide a smooth internal surface and superior insulation, making it the ideal choice for projects where noise reduction and hygiene are priorities.
All units are compatible with selection software for EUROVENT, AHRI (ARI-440), and district cooling conditions. We also provide customized requirements and OEM productions to meet specific consultant specifications across the GCC.
Key Performance Features
Sandwich Panel Design: Available with 25mm double-skin panels for maximum thermal and acoustic insulation.
Condensation Control: The insulated double-skin structure prevents external condensation in high-humidity environments.
Internal Hygiene: The smooth internal metal skin prevents insulation erosion into the airstream and allows for easy cleaning.
High-Efficiency Heat Exchangers: Features 3/8″ (9.52mm) refrigeration-quality copper tubes and hydrophilic blue aluminum fins.
Motor Protection: Built-in single-phase motors include IP20 and thermal protection as standard.
Acoustic Excellence: The double-skin sandwich panel acts as an effective sound barrier, significantly reducing the radiated noise from the unit.
Enhanced Durability: Constructed with a standard Q235 galvanized steel sheet outer skin for long-term structural integrity.
Optimized Airflow: Equipped with centrifugal forward ABS or steel wheel DIDW fans for high efficiency and quiet operation.
Reliability: Every unit undergoes a 100% factory leakage test at 350 PSI.
Control Versatility: Compatible with various mechanical and digital thermostats, with optional network control via a DIP switch.
The Double Skin Casing FCU is available in the following configurations:
Airflow Range: 340 m³/h to 2380 m³/h (200 to 1400 CFM).
Row Configurations: * 2 tubes + 3 rows
2 tubes + 4 rows
4 tubes + 3+1 rows
Model Variants: Available as an option for Low Static Pressure & High Static Pressure Fan Coil Units models.
Structure & Casing
Panel Assembly: The sandwich panels are secured to a robust internal frame to ensure airtightness and structural rigidity.
Internal Finish: Smooth internal skin prevents the buildup of dust and microbial growth.
Fan & Motor Assembly
Balanced Performance: ABS fan impellers are utilized for high efficiency and low-noise air distribution.
Safety: Motors are equipped with thermal protection for continuous safe operation.
Accessories
Valve Kits: Mechanical or thermal control valves (DN15, DN20, or DN25) can be factory-assembled.
Drain Trays: Power-coated G.I. material auxiliary drain trays are available to collect condensate from valve kits.
Sea Shipment Standards: Units are individually packed in sea-shipment worthy quality cartons for FCL.
LCL & Air Protection: Extra pallets with corner protection and forklift gaps are provided to ensure safe transit across the Middle East.
Check out the air handling unit options suitable for your project.
Frequently Asked Questions (FAQs) – TAITECH Double Skin Casing FCU
Find answers below to the most common inquiries regarding the TAITECH Double Skin Casing FCU series supplied by Klima Global across the GCC.
What is the thickness of the double skin casing?
The TAITECH series offers the Double Skin Casing FCU with a choice of 25mm sandwich panel thickness, depending on the project’s insulation requirements.
Are DC motors available for these units?
Yes. While single-phase AC motors are standard, DC motors are available as an optional requirement for increased energy efficiency.
How is the coil tested for quality?
100% of all coils in the fan coil units undergo a rigorous leakage test at 350 PSI before assembly.
Can I get a factory-installed valve kit for this model?
Yes, mechanical or thermal control valves (DN15, DN20, or DN25) can be factory-assembled and installed either inside or outside the fan coil units.
Does the unit include a drain tray for the valves?
Yes, an auxiliary power-coated G.I. material drain tray is available to collect any condensate from the valve kit and connection points.
