Features for Model K Air Curtain
- Metal casing with durable powder spray coating.
- Unique Arc design and slim body.
- High efficiency and low noise.
- Convenient operation,easily adjust air pattern.
- Multiple width available:600,900,1000,1200,1500,1800 and 2000mm.
Technical Details of Model K
Voltage / Frequency:
All models operate on a standard supply voltage of 220-240V / 50Hz, ensuring compatibility with most electrical systems.
Installation Height:
Recommended installation height for all models is 2.3–5 meters, providing optimal performance and air distribution.
Technical Details of Model K
Voltage / Frequency:
All models operate on a standard supply voltage of 220-240V / 50Hz, ensuring compatibility with most electrical systems.
Installation Height:
Recommended installation height for all models is 2.3–5 meters, providing optimal performance and air distribution.

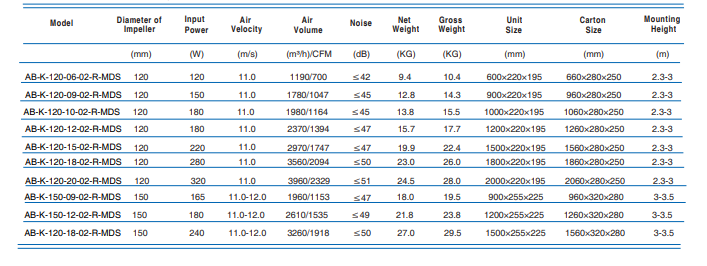

Air Curtain Performance Specifications
| Model | Diameter of Impeller (mm) | Input Power (W) | Air Velocity (m/s) | Air Volume (m³/h)/CFM | Noise (dB) |
|---|---|---|---|---|---|
| AB-K-120-06-02-R-MDS | 120 | 120 | 11.0 | 1190 / 700 | ≤42 |
| AB-K-120-09-02-R-MDS | 120 | 150 | 11.0 | 1780 / 1047 | ≤45 |
| AB-K-120-10-02-R-MDS | 120 | 180 | 11.0 | 1980 / 1164 | ≤45 |
| AB-K-120-12-02-R-MDS | 120 | 180 | 11.0 | 2370 / 1394 | ≤47 |
| AB-K-120-15-02-R-MDS | 120 | 220 | 11.0 | 2970 / 1747 | ≤47 |
| AB-K-120-18-02-R-MDS | 120 | 280 | 11.0 | 3560 / 2094 | ≤50 |
| AB-K-120-20-02-R-MDS | 120 | 320 | 11.0 | 3980 / 2342 | ≤50 |
| AB-K-150-09-02-R-MDS | 150 | 165 | 11.0–12.0 | 1960 / 1153 | ≤47 |
| AB-K-150-10-02-R-MDS | 150 | 180 | 11.0–12.0 | 2160 / 1271 | ≤48 |
| AB-K-150-12-02-R-MDS | 150 | 240 | 11.0–12.0 | 2610 / 1535 | ≤50 |
| AB-K-120-18-02-R-MDS | 150 | 240 | 11.0–12.0 | 3260 / 1918 | ≤50 |
Air Curtain Physical Dimensions & Weights
| Model | Net Weight (KG) | Gross Weight (KG) | Unit Size (mm) | Carton Size (mm) | Mounting Height (m) |
|---|---|---|---|---|---|
| AB-K-120-06-02-R-MDS | 9.4 | 10.4 | 600×220×195 | 660×280×250 | 2.3–3 |
| AB-K-120-09-02-R-MDS | 12.8 | 14.3 | 900×220×195 | 960×280×250 | 2.3–3 |
| AB-K-120-10-02-R-MDS | 13.8 | 15.5 | 1000×220×195 | 1060×280×250 | 2.3–3 |
| AB-K-120-12-02-R-MDS | 15.7 | 17.7 | 1200×220×195 | 1260×280×250 | 2.3–3 |
| AB-K-120-15-02-R-MDS | 19.9 | 22.4 | 1500×220×195 | 1560×280×250 | 2.3–3 |
| AB-K-120-18-02-R-MDS | 23.0 | 26.0 | 1800×220×195 | 1860×280×250 | 2.3–3 |
| AB-K-120-20-02-R-MDS | 25.0 | 28.0 | 2000×220×195 | 2060×280×250 | 2.3–3 |
| AB-K-150-09-02-R-MDS | 18.0 | 19.5 | 900×255×225 | 960×320×280 | 3–3.5 |
| AB-K-150-10-02-R-MDS | 21.8 | 23.8 | 1000×255×225 | 1060×320×280 | 3–3.5 |
| AB-K-150-12-02-R-MDS | 23.8 | 26.5 | 1200×255×225 | 1260×320×280 | 3–3.5 |
| AB-K-120-18-02-R-MDS | 27.0 | 29.5 | 1500×255×225 | 1560×320×280 | 3–3.5 |
